orhelper¶

Script and automate OpenRocket from Python.

Load a .ork file, change the rocket or the launch conditions, run simulations, and get the results back as NumPy arrays. Use it for parameter sweeps, optimisation, Monte Carlo landing-zone studies, or your own plots.

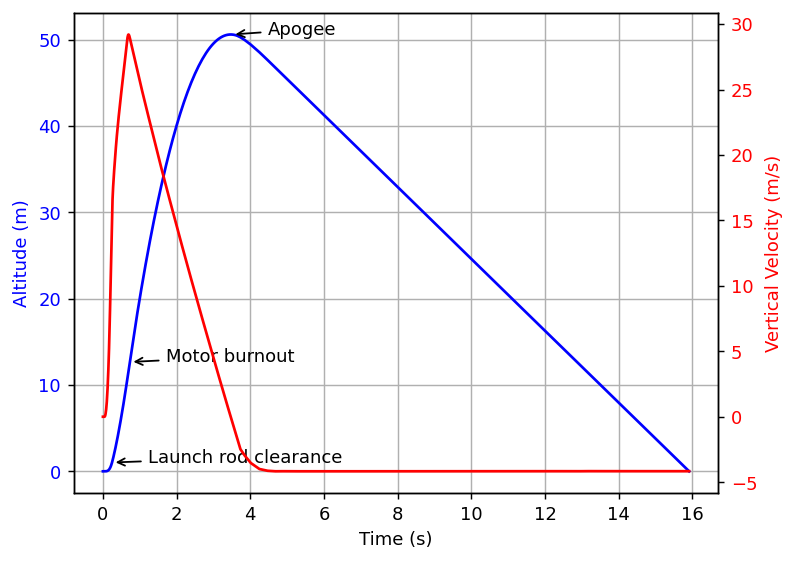

Altitude and vertical velocity of a simulated flight, with burnout and apogee annotated

import orhelper
from orhelper import FlightDataType

with orhelper.OpenRocketInstance(log_level="ERROR") as instance:
    helper = orhelper.Helper(instance)

    document = helper.load_doc(orhelper.sample_ork_path())  # or "my_rocket.ork"
    simulation = document.getSimulation(0)
    helper.run_simulation(simulation)

    data = helper.get_timeseries(simulation, [FlightDataType.TYPE_TIME, FlightDataType.TYPE_ALTITUDE])
    print(f"Apogee: {data[FlightDataType.TYPE_ALTITUDE].max():.0f} m")

Where to go next¶

New here? Install orhelper and run the quickstart.
Want to understand how it works? Read How orhelper works, then Running simulations.
Looking for something specific? The examples, the API reference and the list of flight data variables cover the details.
Something not working? See Troubleshooting.

Good to know¶

orhelper works with OpenRocket 22.02, 23.09, 24.12 and 26.xx (see OpenRocket versions).
It starts OpenRocket's own Java code inside your Python process, with JPype. orhelper adds helpers for the common tasks; everything else is OpenRocket's Java API, which you call directly.
The source is on GitHub and released under the GNU General Public License v2.
